Schweizer / SGS 1-29

Glider Reg. Number: -

1948

Design & Development

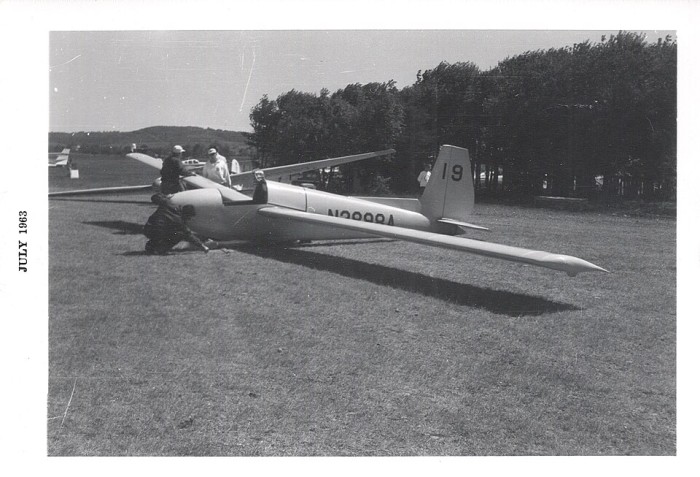

The Schweizer SGS 1-29 is an American single-seat, mid-wing, experimental laminar flow airfoil glider built by Schweizer Aircraft of Elmira, New York.

The 1-29 is a development of the Schweizer SGS 1-23 that utilizes a 1-23 fuselage and a newly constructed set of 49.2 foot (15.0 m) span wings.

The aircraft was constructed to study the feasibility of producing improved boundary layer laminar flow on a metal-winged sailplane. Only one SGS 1-29 was produced and the project was not pursued further.

Specifications

Total number built: 1

Span:                                                      49.2 ft                                                      15.0 m

Length:                                                  20.75 ft                                                   6.32m

Wing Area:                                          153.8 ft²                                                14.29 m²

Empty Weight:                                  495 lbs                                                     224 kg

Wing Loading (max.):                     4.87 lbs/ft²                                           23.7 kg/m²

Glide Ratio:                                          34:1 @ 52 mph                                   83.7 km/h

Minimum rate of sink:                    2.05 ft/sec @ 43 mph                     0.62 m/sec @ 69.2 km/h
